Pathfinder projects

Our Pathfinder projects aim to reduce the use of storm overflows in our region. You can find out more and view our current projects here.

background

What is a pathfinder project?

Our Pathfinder projects allow us to trial solutions in a community to reduce nearby storm overflows. The most efficient and sustainable way to do this is to slow the amount of surface water entering our sewer and prevent groundwater infiltration.

During periods of heavy rain, excess surface water (rainwater) can begin to overwhelm our sewer network. Groundwater also plays a part, seeping into our pipes underground. To avoid this extra water backing up into home and businesses, we use pressure relief valves known as storm overflows to release it.

Our Clean Rivers and Seas Task Force are committed to reducing how much we use storm overflows, delivering several pathfinder projects in the next two years (until March 2025).

What causes storm overflows?

We used AI and enhanced analysis to determine the root cause of 19,807 storm overflows. The results showed too much rainwater 64%, groundwater infiltration 25%, multiple impacts 11%.

Rainwater

After detailed insight and surveying of the area, we decide which solutions to roll out where rainwater is the main cause of storm overflows

  • Optimisation - reconfiguring our permits and existing sites to help us reduce storm overflows
  • Illegal connections - redirecting surface water that has been misconnected into the foul/combined sewer
  • Household SuDS - rolling out ‘slow the flow’ measures at scale on properties in our catchments
  • Non-household SuDS - targeting large roof areas with ‘slow the flow’ measures to deliver impact
  • Highway schemes - large amounts of surface water come from public highways, influencing the design of placemaking schemes will be an essential part of the solution
  • Seperating surface water - where possible, reconnecting roof gutters and downpipes to the surface water sewer from the combined sewer.
Workers removing a sewer cover

Groundwater infiltration

Groundwater is the water found underground in the cracks and spaces in soil, sand and rock. Groundwater infiltration is when water from the ground squeezes its way into the system through underground public or private pipework.

If the system is filled with groundwater then there is less space for rain and wastewater, so the sewer system is more likely to become overwhelmed when it rains. Some of the solutions we're rolling out to reduce groundwater infiltration are:

  • Relining and sealing sewers to prevent excess groundwater getting in.
  • Monitoring with temperature sensors, boreholes and pipe cameras.
  • Constructing wetlands to safely soak up, hold and pre-treat excess water.

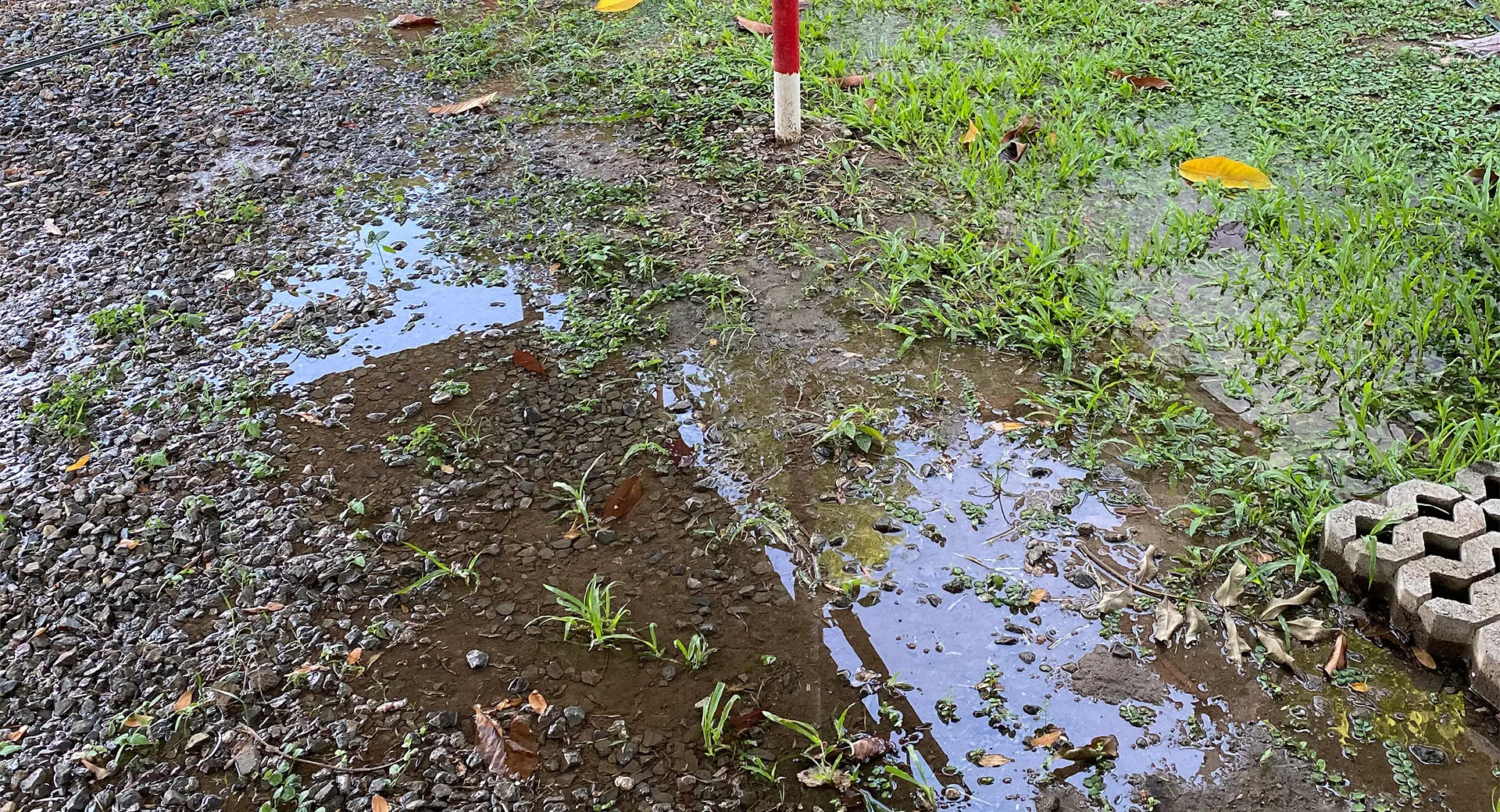

A field of grass flooded with water

How do the projects work?

We'll complete each pathfinder project in three stages:
1

Initial survey

We'll conduct an initial survey of the catchment area and action any immediate interventions. This could include cleaning screens and pipes to reduce the chance of blockages.
2

New concepts and approaches

Next, we'll put ‘no regret’ interventions in place and pilot new concepts and approaches. This may include controlled improvements to our existing network. It can also involve introducing new schemes and incentives to encourage surface water management.
3

Complex interventions

Finally, we'll install larger and more complex interventions. This will involve working in partnership with local communities on a larger scale. For example, we may install soakaways, roadside swales, or rain gardens in schools. We may also develop public green spaces, enhance highway drainage, or introduce real-time smart control of the sewer network. We'll continue to test the effectiveness of these measures and we'll apply these findings to other areas.

Our pathfinder projects

We've identified three key focus areas to carry out our pathfinder projects. These areas pose complex challenges and have a higher volume of
storm overflow releases. They're also areas that need an innovative approach to tackling local wastewater treatment issues.

North Kent and the East South Downs and Harbours The Solent, Isle of Wight
